Clip-in connection
Formed tabs connect the arm to the rail.
U-Type Brackets for Electric Water Heaters
Two materials. Two thicknesses. Choose the mounting system for your installation.
- Overall size
- 550 × 300 mm
- Material
- Stainless Steel / Galvanized Carbon Steel
- Plate thickness
- 3 mm / 2.5 mm
Four models. Clear specifications.
| Model | Material | Plate thickness | Overall size |
|---|---|---|---|
| US30 | Stainless Steel | 3 mm | 550 × 300 mm |
| US25 | Stainless Steel | 2.5 mm | 550 × 300 mm |
| UC30 | Galvanized Carbon Steel | 3 mm | 550 × 300 mm |
| UC25 | Galvanized Carbon Steel | 2.5 mm | 550 × 300 mm |
UC25: specifications only; product image not shown.
Know the fit.
550 mm
300 mmPlate thickness
3 mmUS30 / UC30
2.5 mmUS25 / UC25
Slotted rail and perforated arms. Confirm mounting positions for your installation.
Details that define each model.

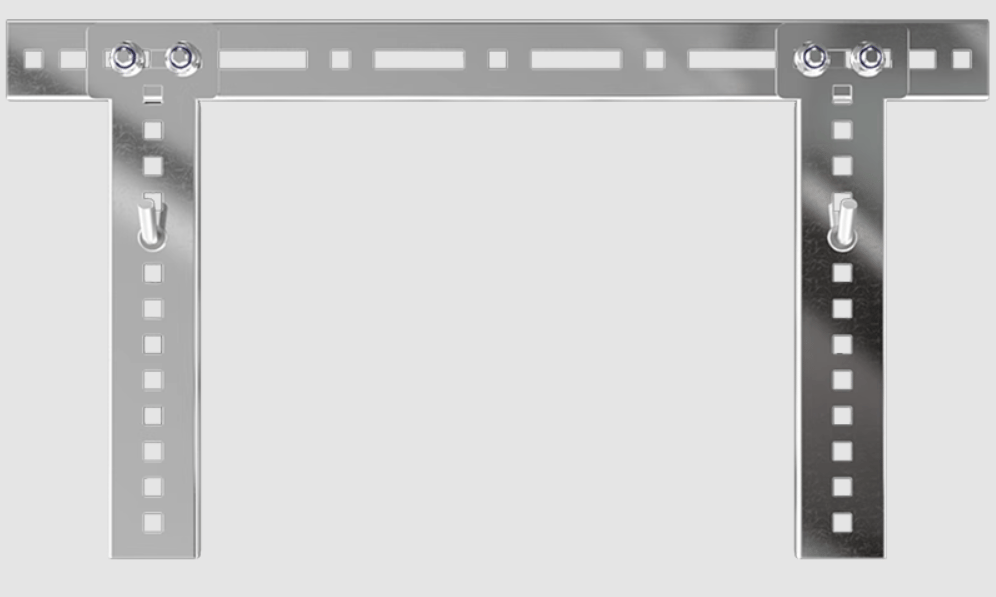

Bolted connection
Two bolts at each rail-to-arm joint.

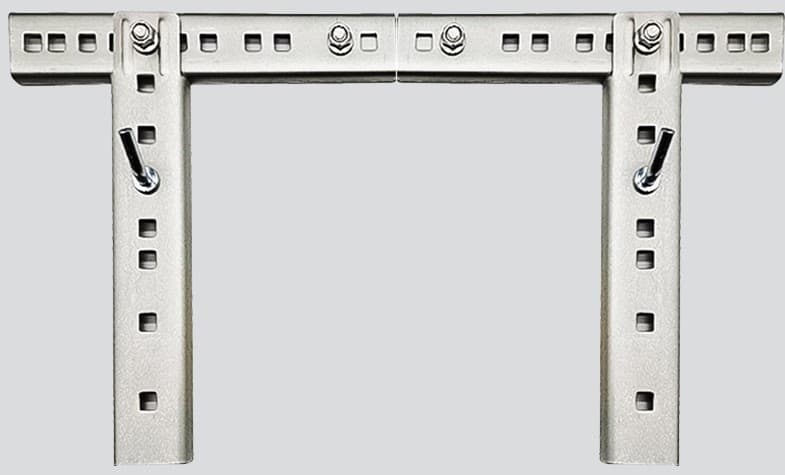

Segmented crossbar
Separate rail sections form the crossbar.
The kit, clearly laid out.
US30 component set. Connection hardware varies by model.
- 1 Crossbar
- 2 Vertical arms
- 2 Hooks
- 2 Nuts
- 6 Expansion fixings
5 mm hex drive
